Aventon

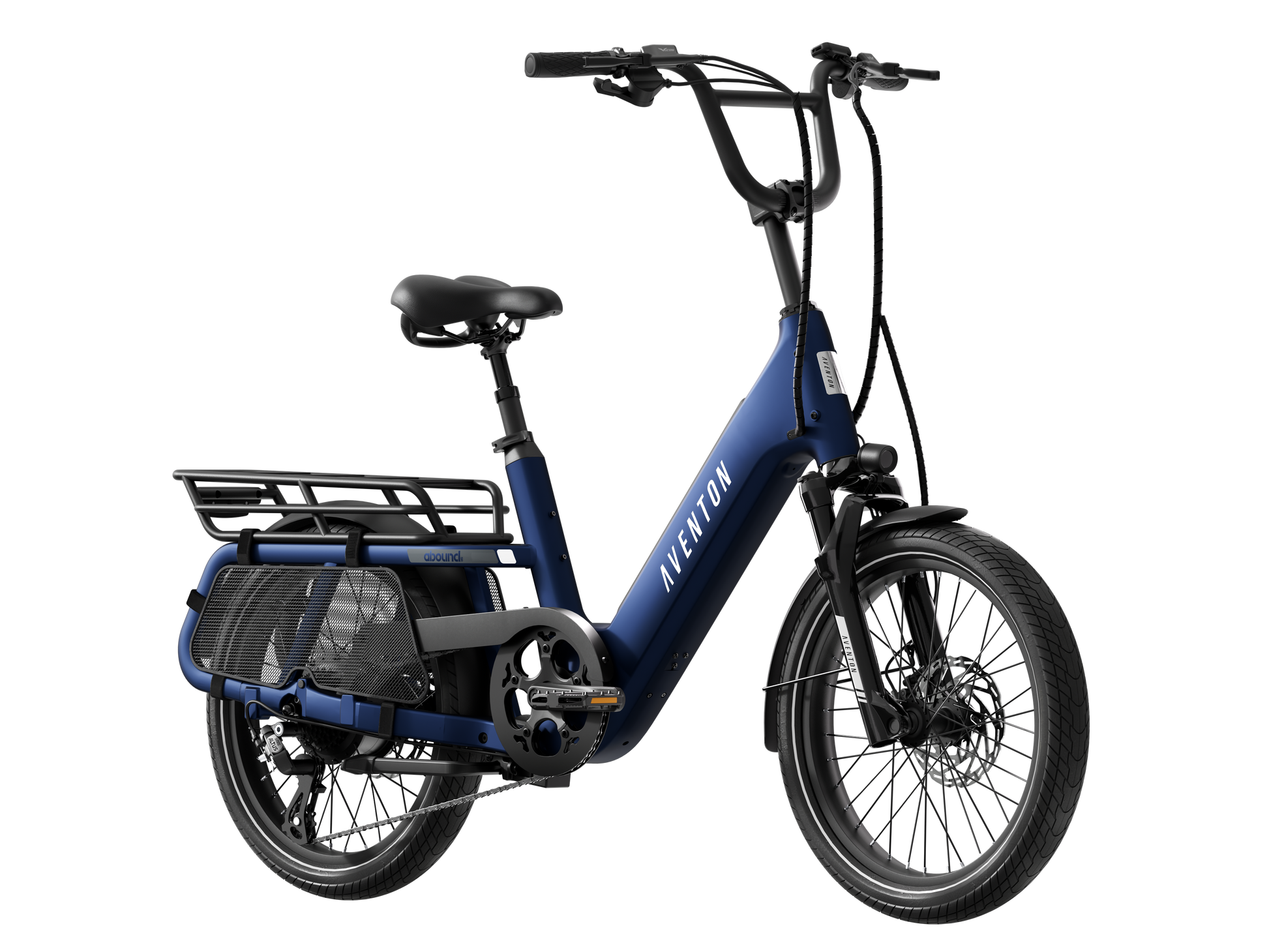

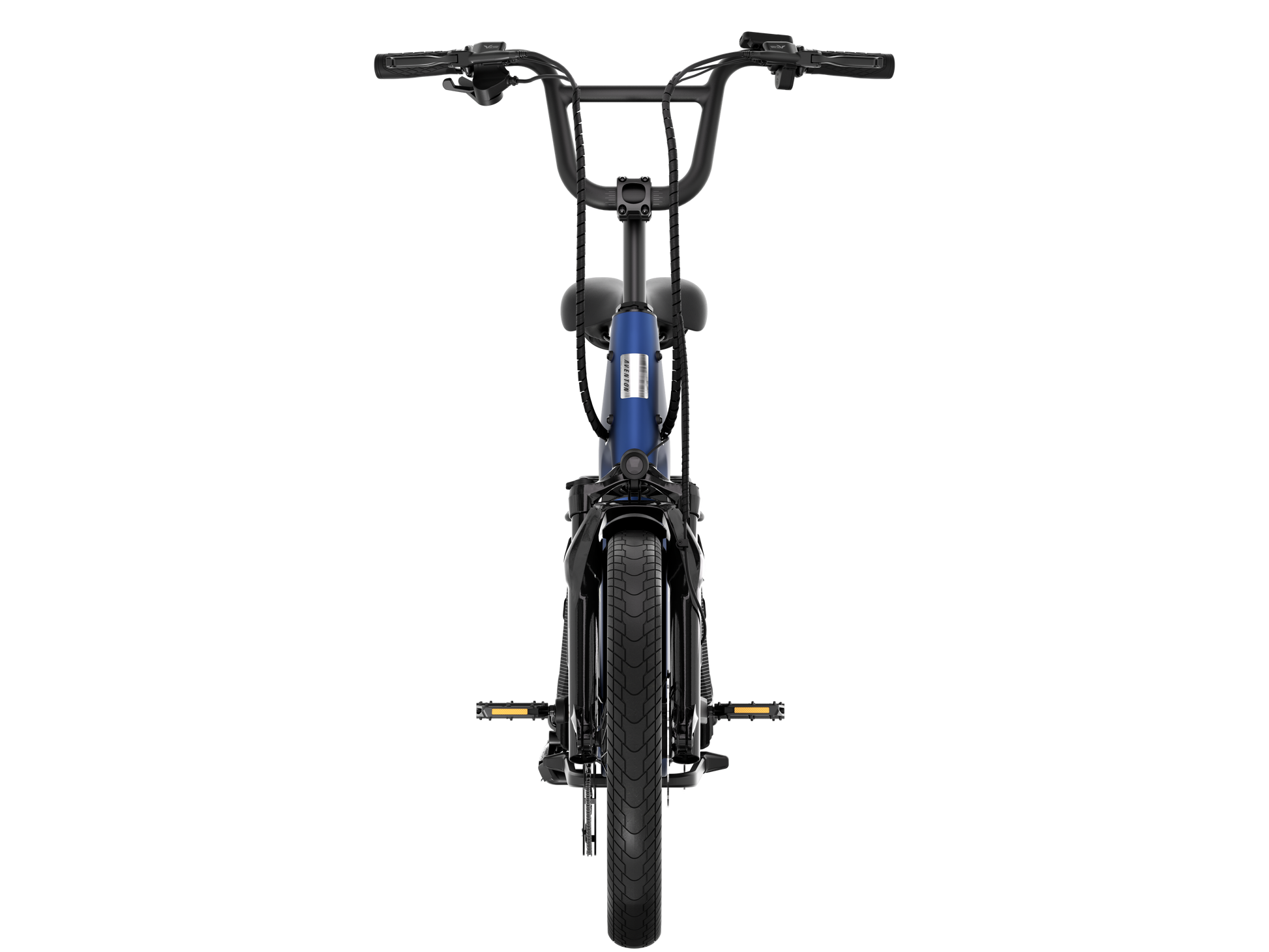

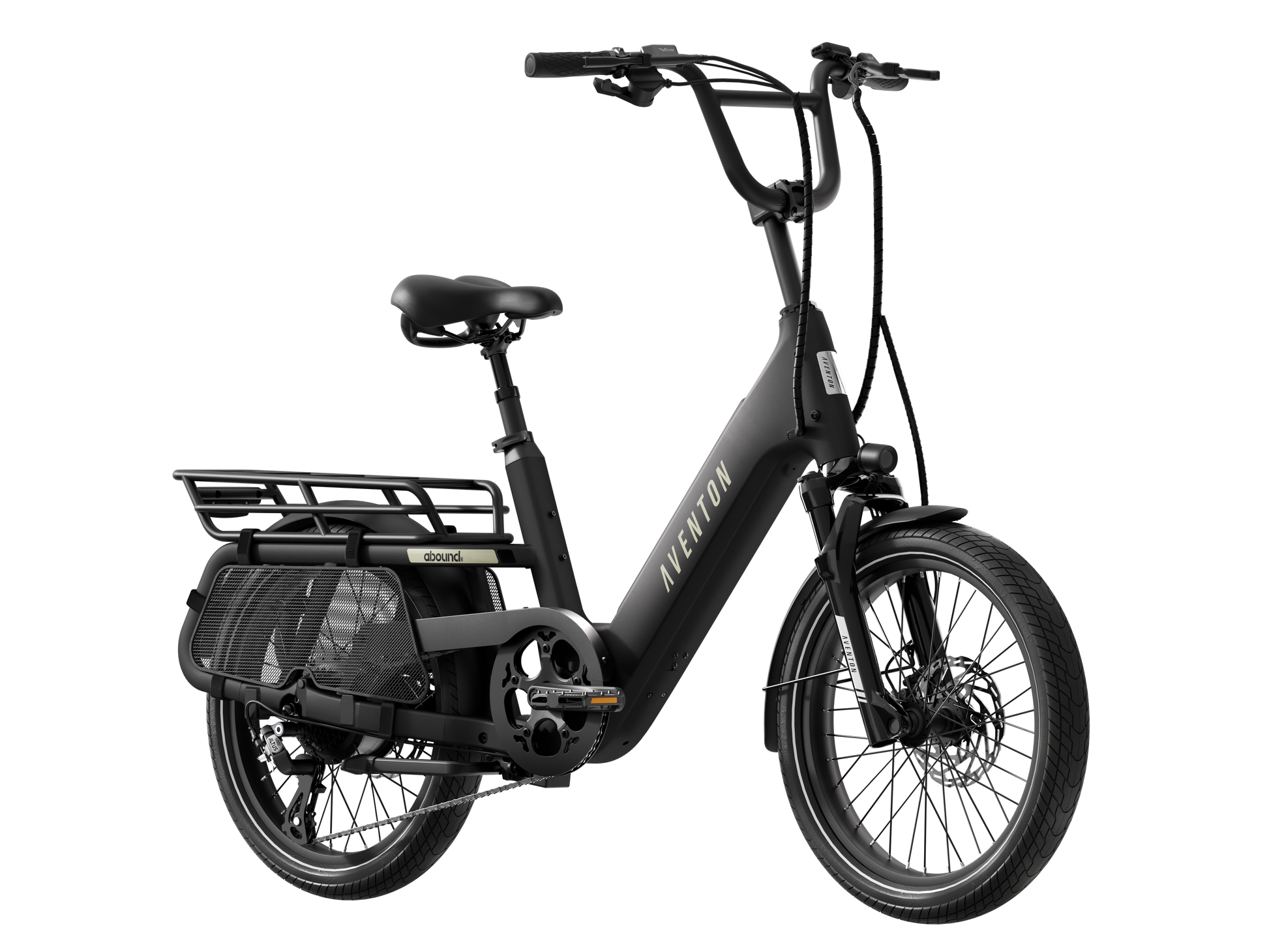

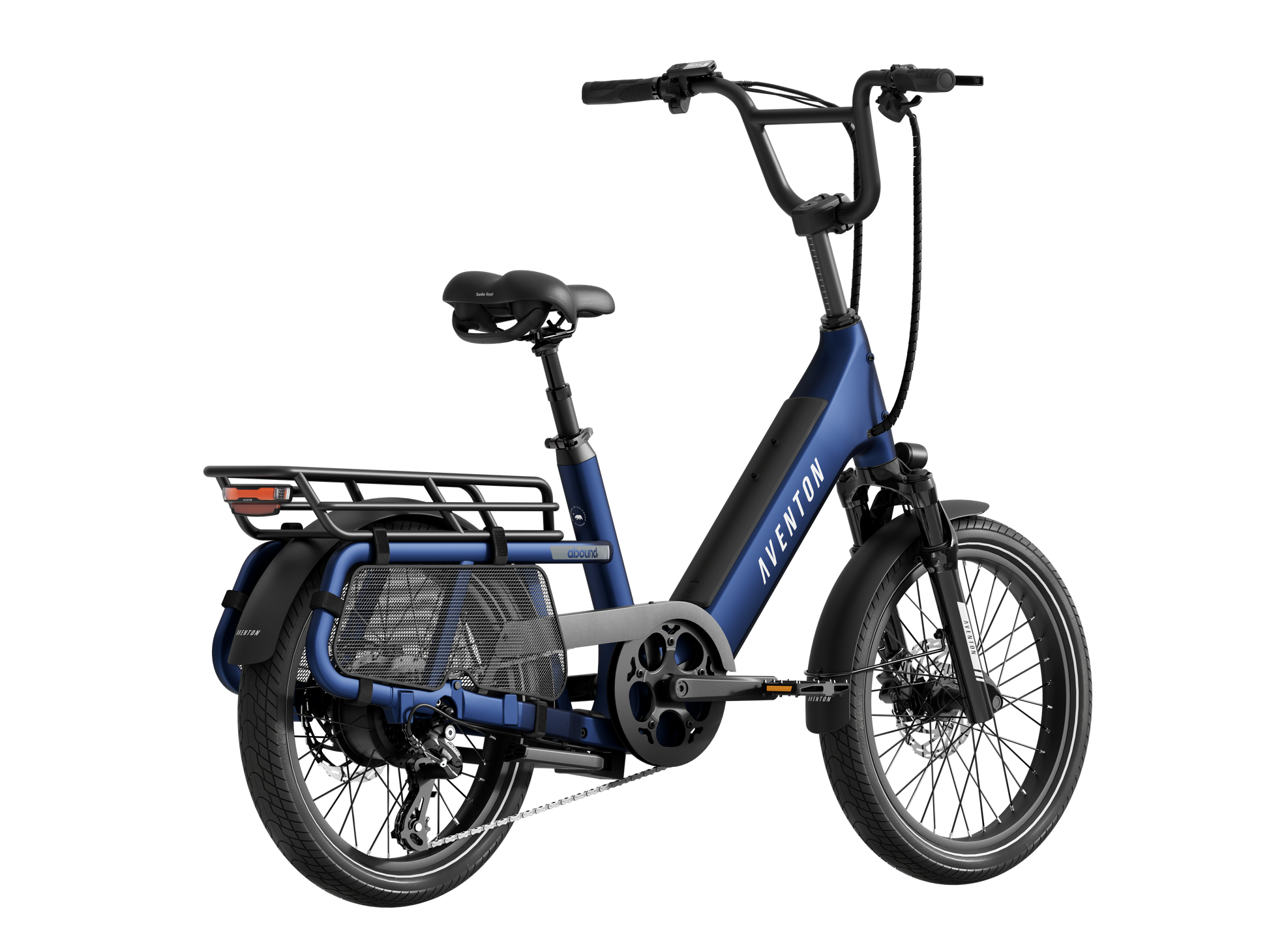

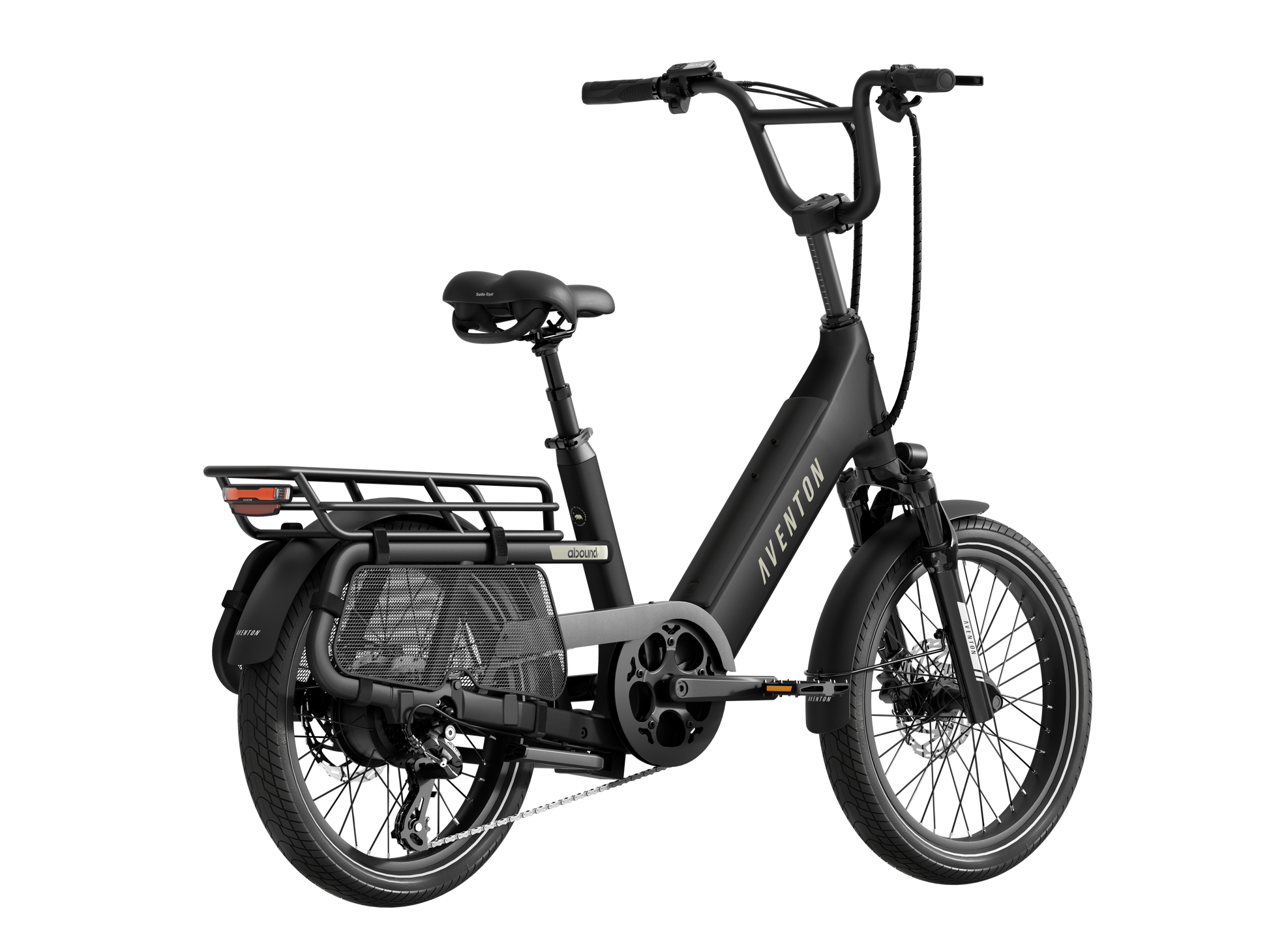

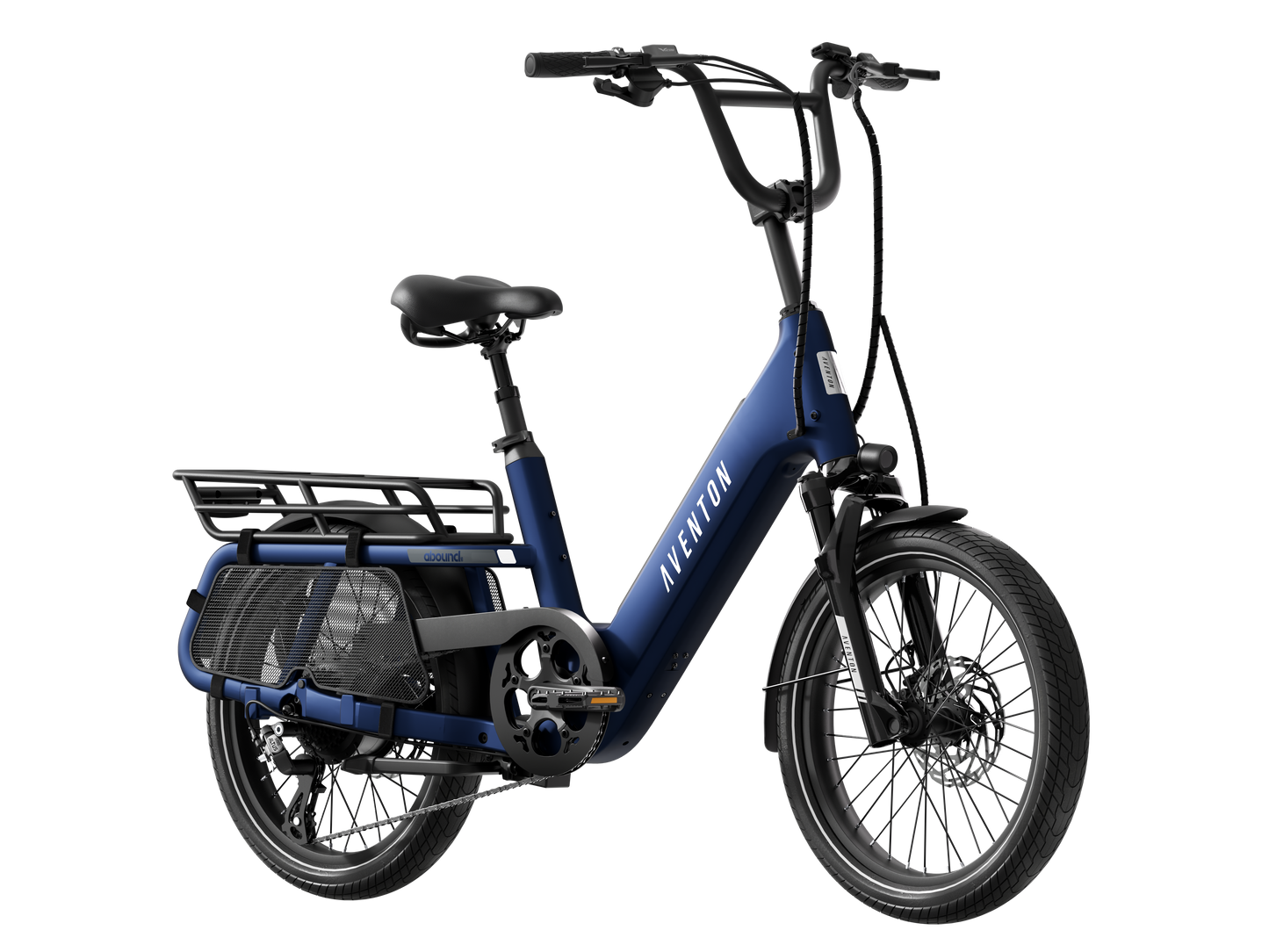

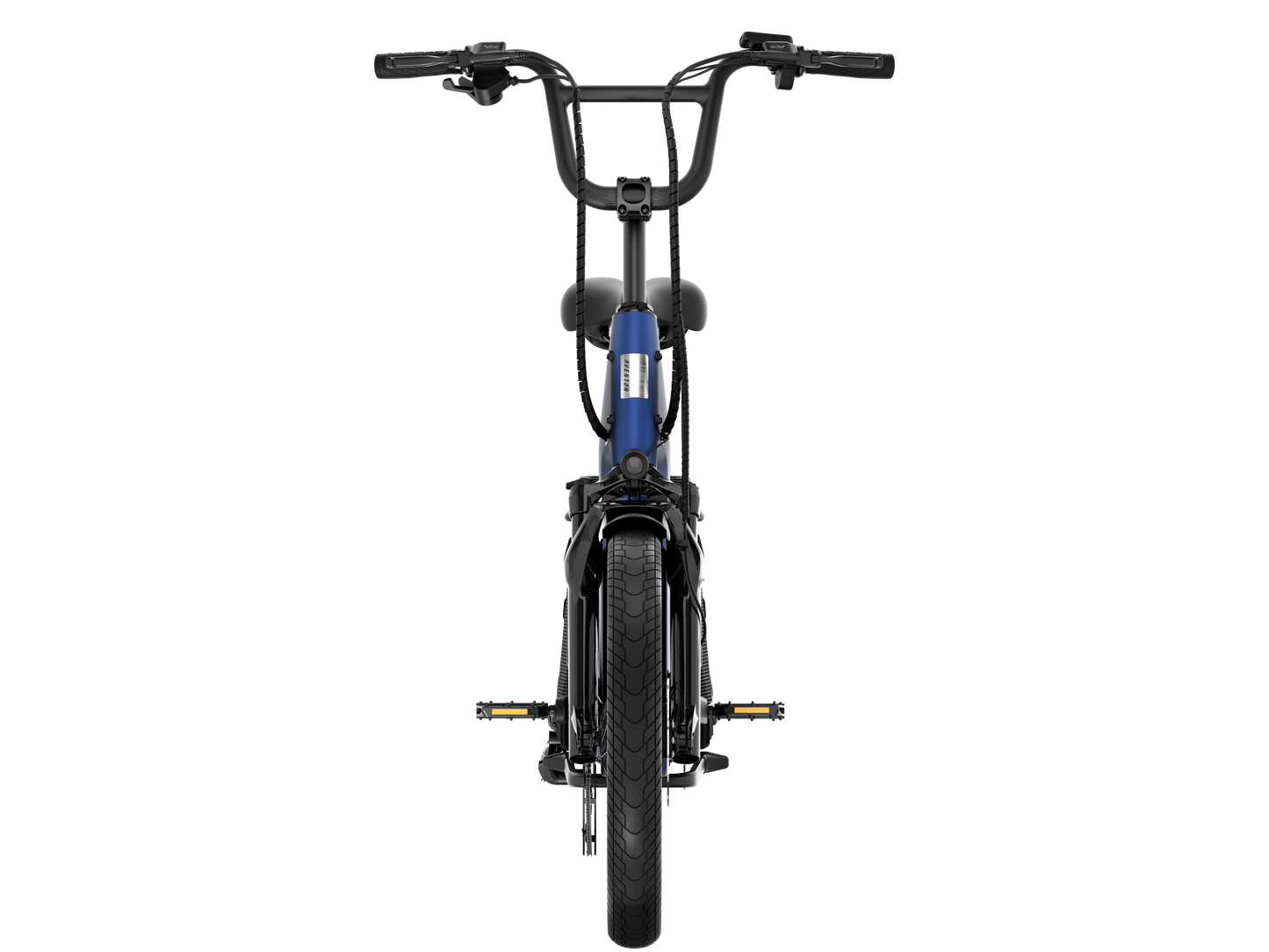

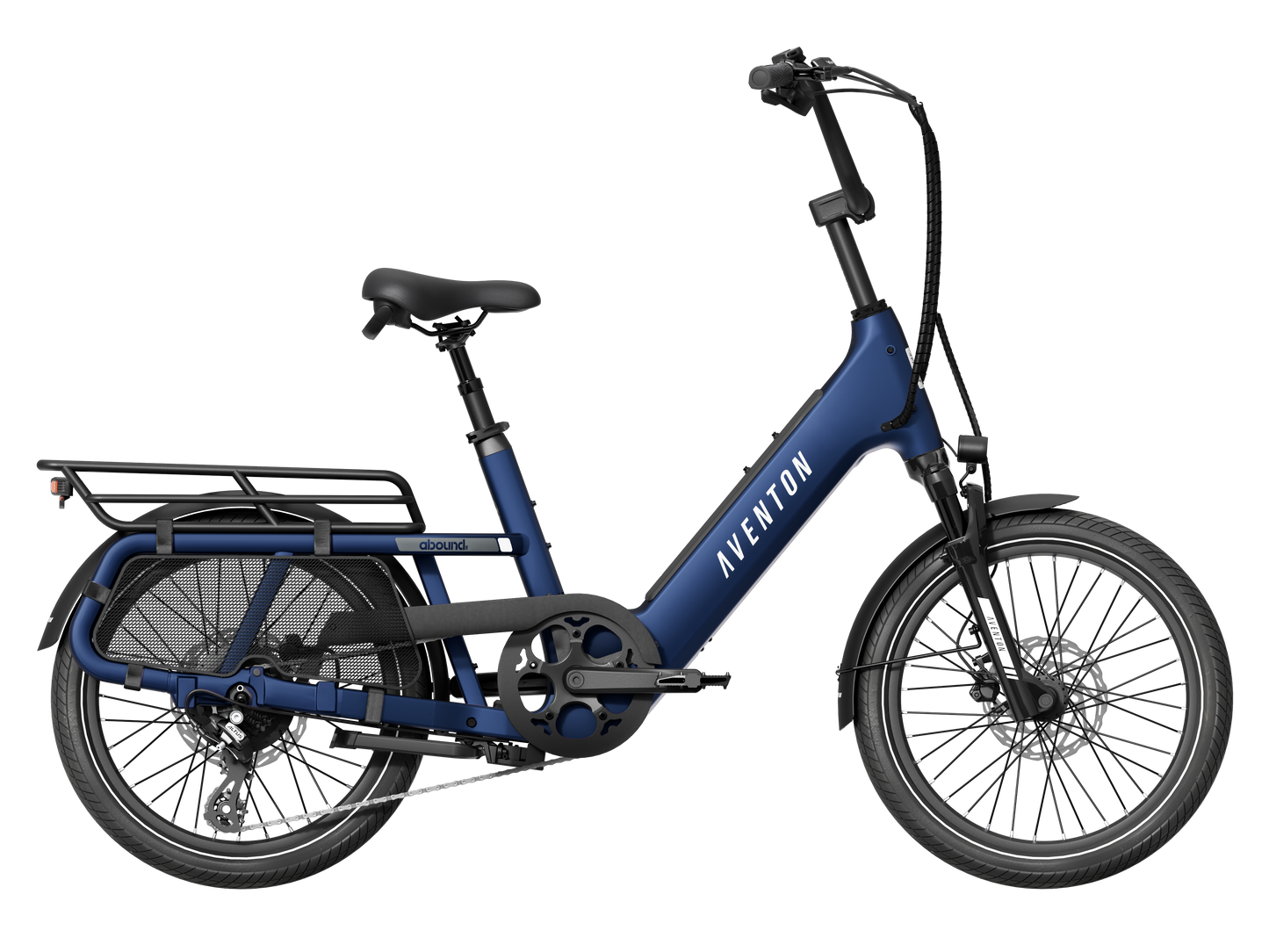

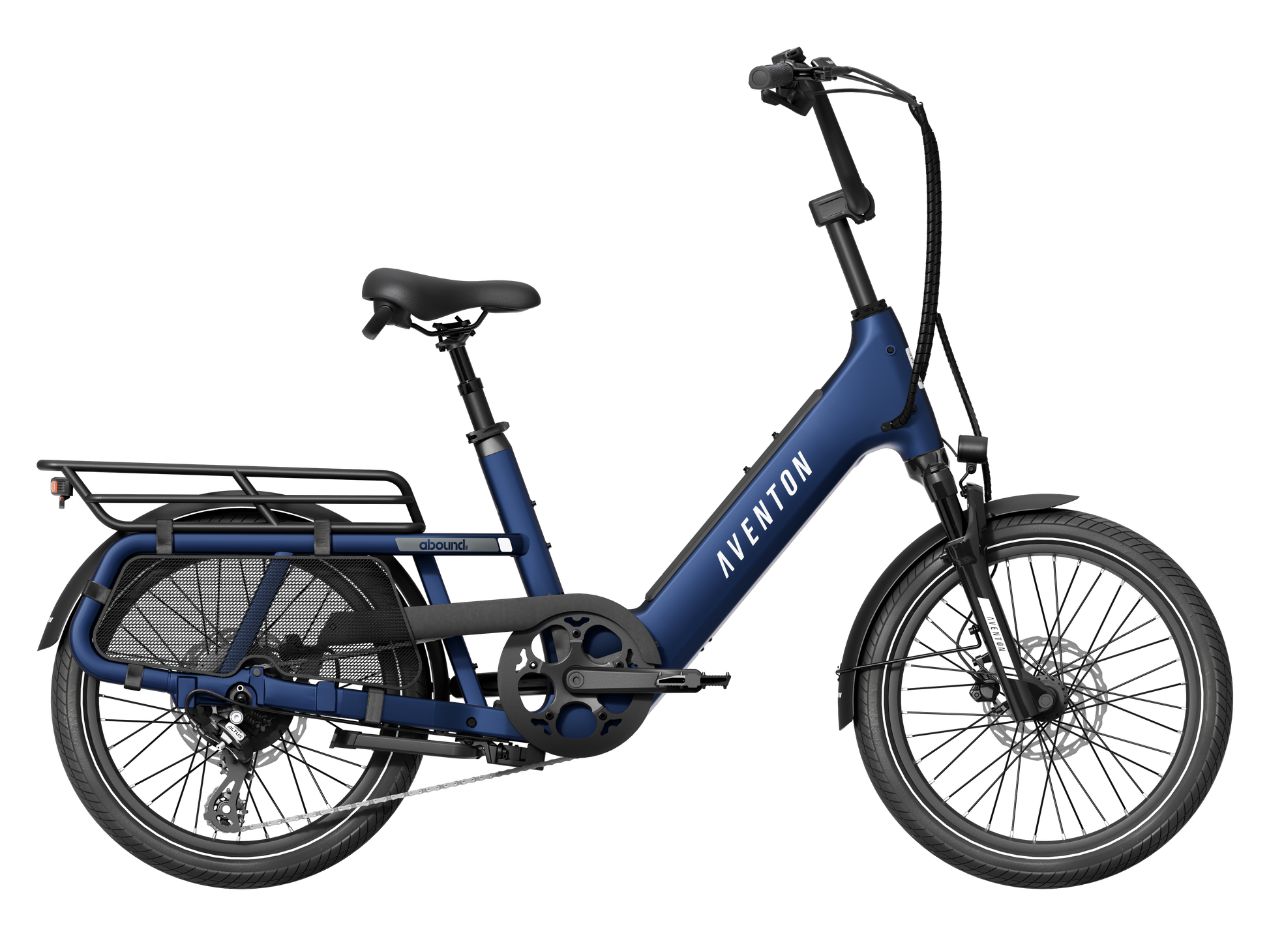

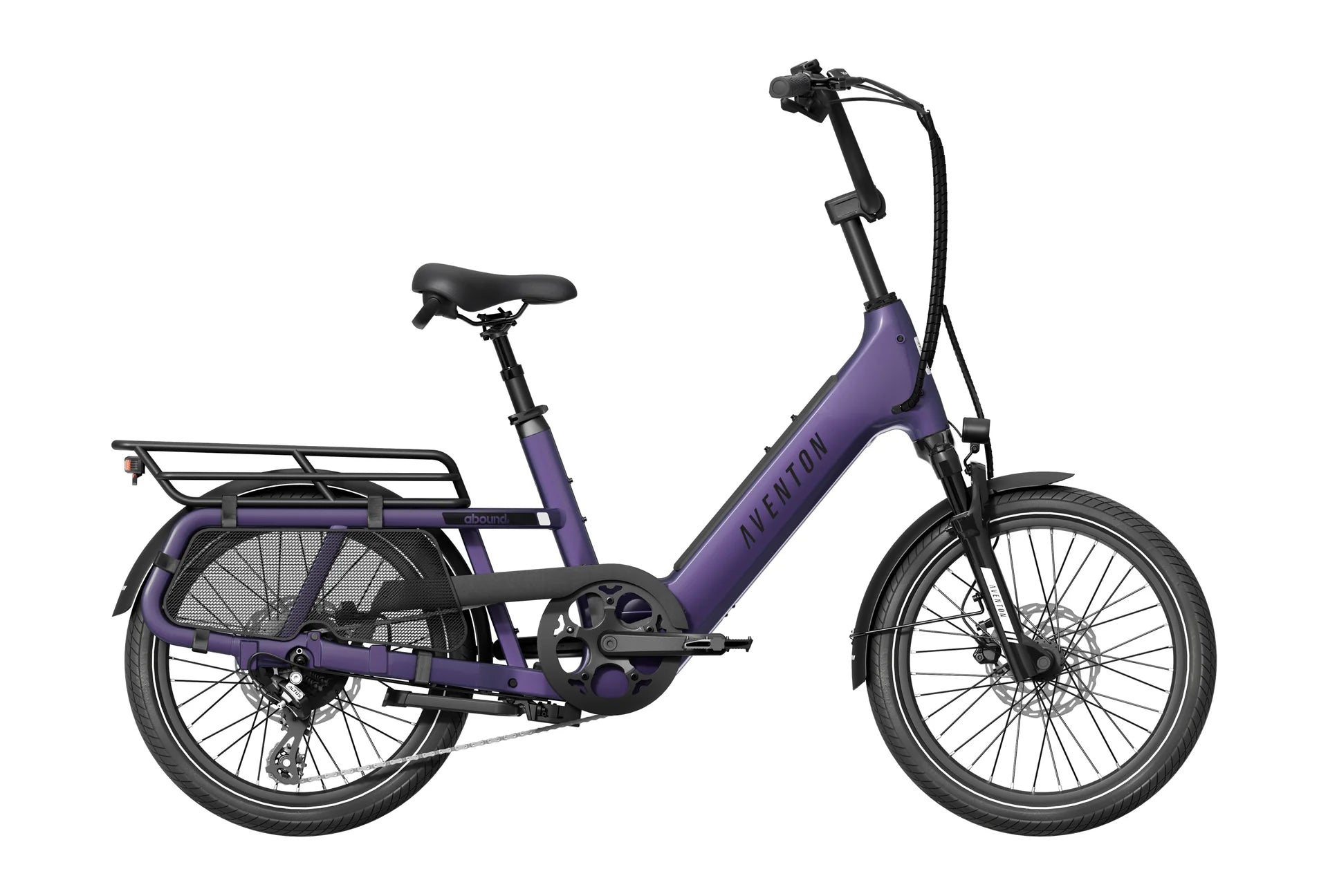

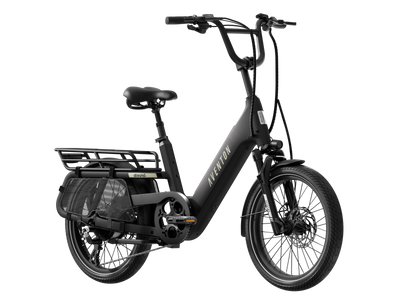

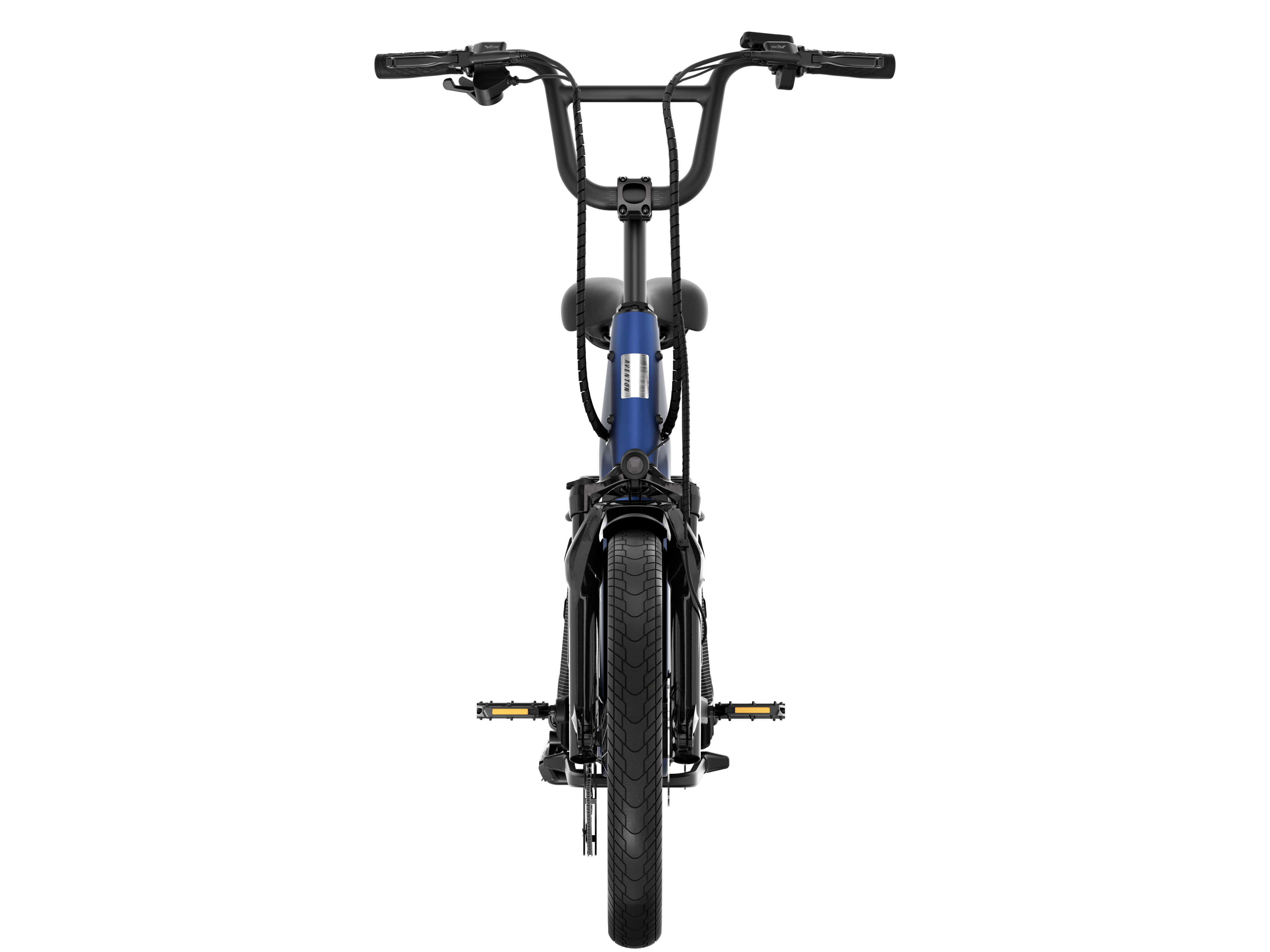

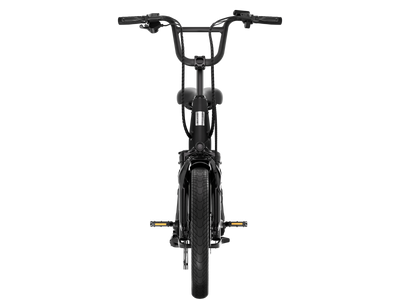

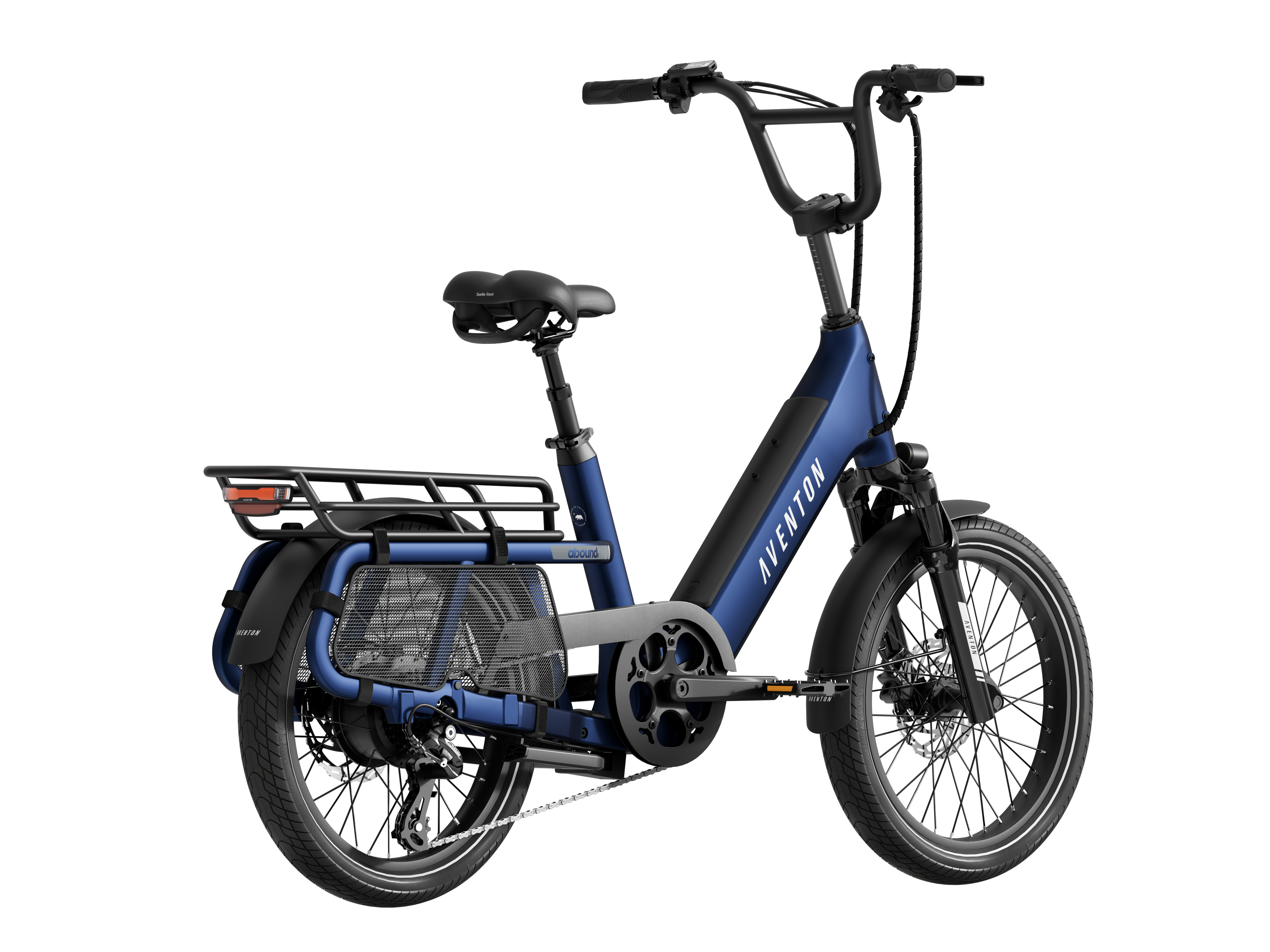

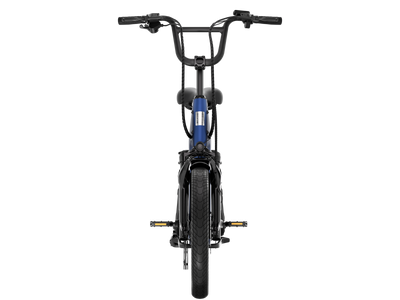

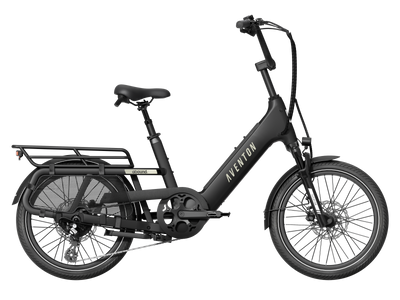

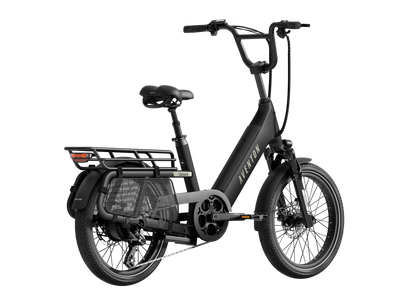

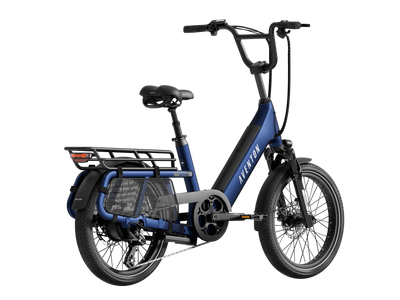

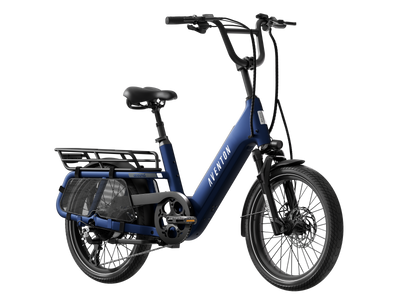

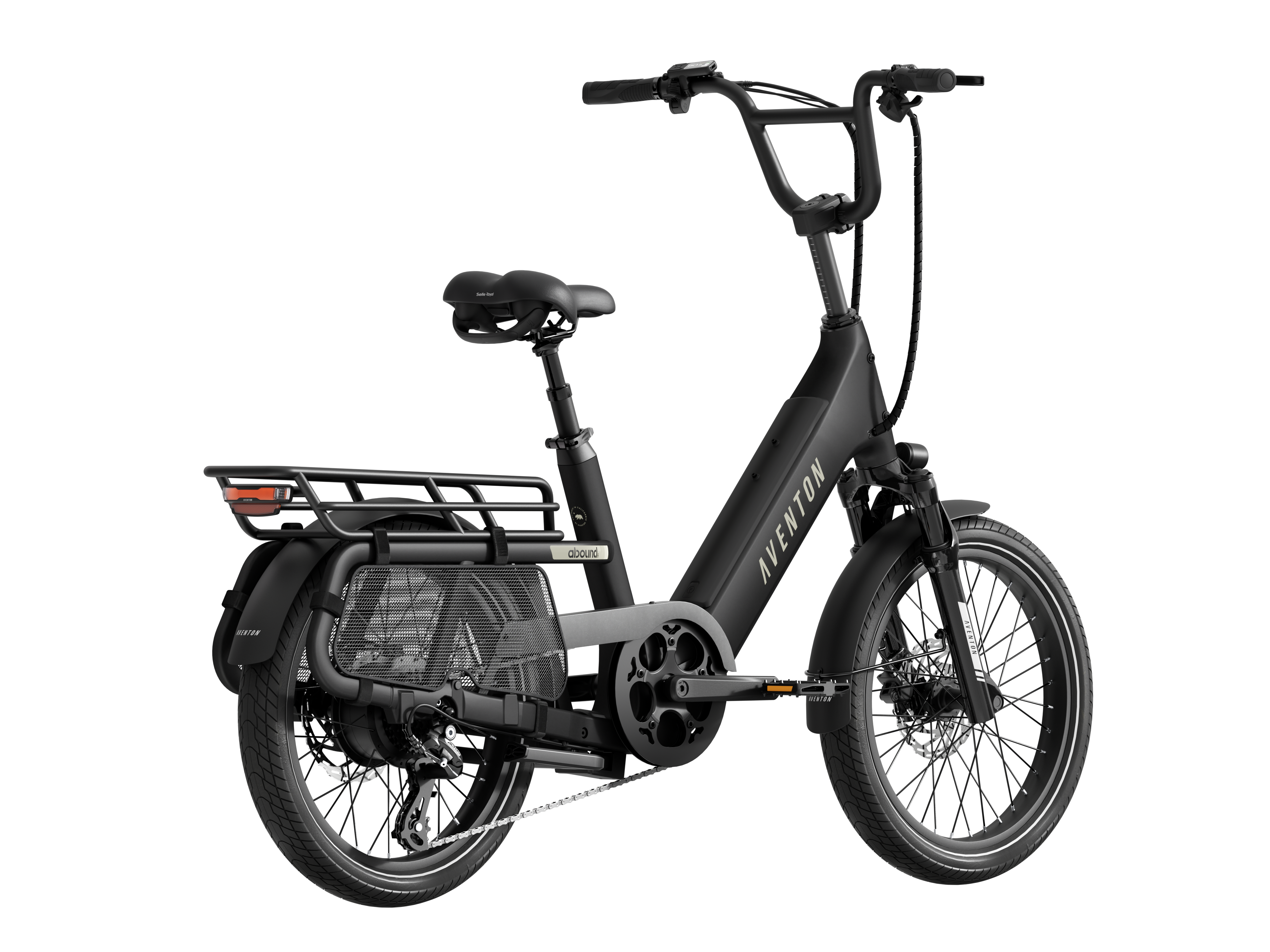

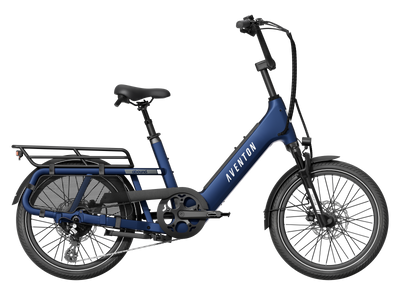

Aventon Abound SR Ebike
Aventon Abound SR Ebike
Regular price
$1,899.00 USD
Regular price
$1,999.00 USD
Sale price
$1,899.00 USD
Unit price
/
per
Couldn't load pickup availability
Share
Introducing the all-new Abound SR—the enhanced cargo ebike built to carry anything and tackle every challenge. Whether you're cruising through the streets or bike pooling with a friend, the Abound SR is always ready for any action. Its compact frame keeps you agile, while advanced security†and GPS† features give you total peace of mind.
Outfitted with an adjustable quill stem, suspension seatpost, and cutting-edge theft deterrent features†, every ride is smooth, secure, and stress-free. Whether it’s a quick trip or a big haul, the Abound SR is your go-to for dominating the road.
GENERAL INFO
MODEL - Abound SR Ebike
WEIGHT - 80 lbs
TOTAL WEIGHT LIMIT - 440 lbs
RIDER HEIGHT - 4'11" - 6'3"
CLASS - Class 2 Ebike
WATER RESISTANCE - IPX4
IDEAL USE - Cargo & Utility
PEDAL ASSIST - 3 Levels
SAFETY CERTIFIED - UL Certified - Abound SR UL 2849, Battery UL 2271
RANGE - Up to 60 miles
FRAMESET
FORK - Threaded Steerer Tube for Quill Stem 15x110 spacing, 50mm travel, adjustable lockout, black stanchions
FRAME STYLE - Step-Through
FRAME - 6061 Aluminum Alloy with Internal Battery. One piece - Diecast aluminum front triangle
WHEELSET
TIRES - 20 x 3.0 urban tire with reflective sidewalls
WHEELS - 20-inch, 12-gauge, 36-hole, double-wall aluminum, black
EBIKE SYSTEM
MOTOR - 36V 750w Hub Drive with 6 speed sensors
MOTOR TORQUE - 80Nm
ECU - Aventon ECU Module featuring wired CAN communication, GPS positioning support, wireless Bluetooth connectivity, and cellular communication capabilities
THROTTLE - Aventon LH Handlebar Mounted
SENSORS - Double Sided Bottom Bracket Torque Sensor
CHARGER - Aventon 4A 42V
DISPLAY - Aventon BC147
SPEED - Class 2
BATTERY - Aventon 36V, 20Ah, 708Wh, LG 21700 cells
BRAKES
REAR BRAKE ROTOR - Tektro 203mm 6 bolt
FRONT BRAKE - Tektro HD-E3520 hydraulic disc brakes
REAR BRAKE - Tektro HD-E3520 hydraulic disc brakes
FRONT BRAKE ROTOR - Tektro 180mm 6 bolt
DRIVETRAIN
CHAIN - 122 Link, 8 Speed
CHAINRING - 52 tooth
CRANK - 3 piece with 165mm crank arms
REAR DERAILLEUR - Shimano Altus RD-M310 8 Speed
SHIFT LEVER - Shimano SL-M315-8R 8 Speed
CASSETTE - Shimano CS-HG200-8 8 speed Cassette, 12-32T
PEDALS - 9/16" Composite Platform
COCKPIT
SADDLE - Aventon by SelleRoyal
SEATPOST - 30.9mm Suspension Seatpost with 50mm travel
HANDLEBARS - BMX Style, 31.8mm bar clamp, 680mm width
STEM - Quill Stem with 31.8mm bar clamp diameter, 40mm length, and 140mm of vertical adjustment
SEAT CLAMP - 34.9mm Quick Release
GRIPS - Lock-on ergonomic
INCLUDED ACCESSORIES
REAR RACK - Included
KICKSTAND - Included: E-lock
REAR WHEEL MESH GUARDS - Included
REAR RACK WEIGHT LIMIT - 143 lbs
Technical Overview
The Abound SR ships as a Class II ebike, with pedal assist and throttle. The Abound SR will also operate with the throttle unplugged and removed, should you want to ride in an area where throttles are prohibited. Abound SR ebike and battery is UL Certified with UL 2849 for the ebike and UL 2271 for the battery. Aventon ebikes are built to the IPX4 water-resistant standard. IPX4 means that your bike is resistant to water splashes from any direction. This means it's OK to ride your ebike in light rain. It won't be harmed by spray from a wet road or raindrops. Your ebike is not intended to be exposed to prolonged rain, be submerged, or subjected to a pressurized spray. Don't use a pressure washer or sprayer to clean your ebike. *Max range is determined using PAS 1 throughout flat terrain with a rider weight of 160 lbs.
