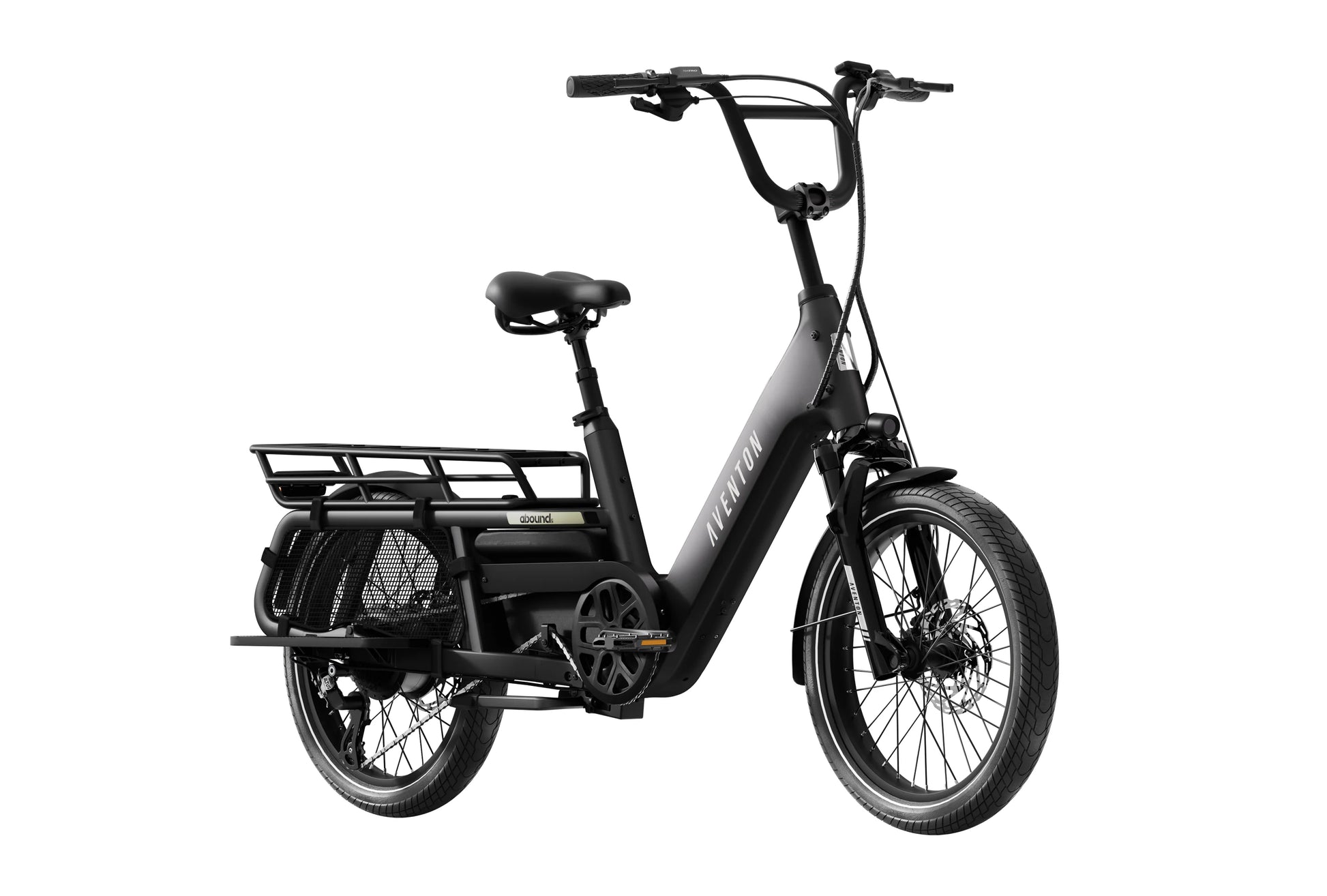

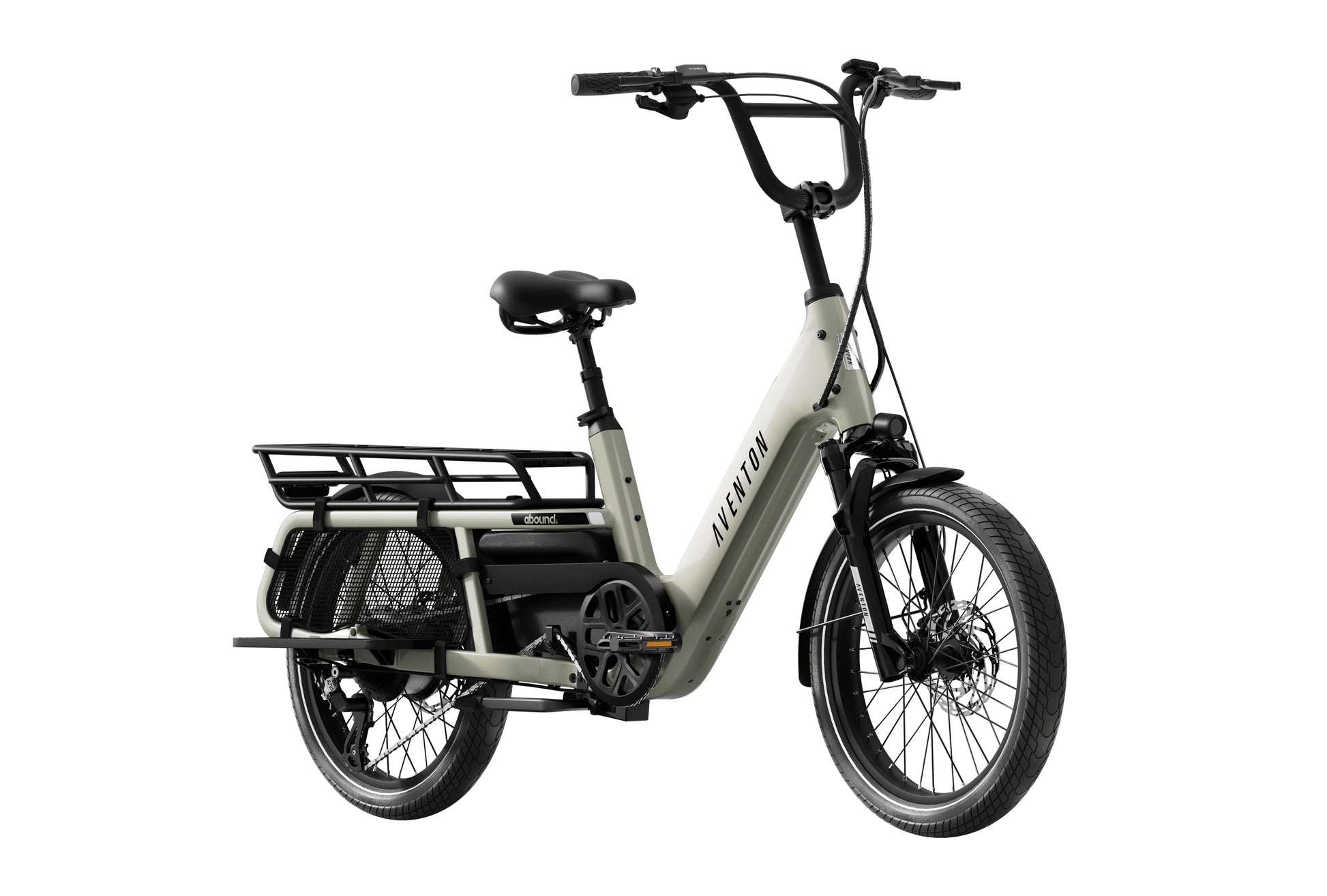

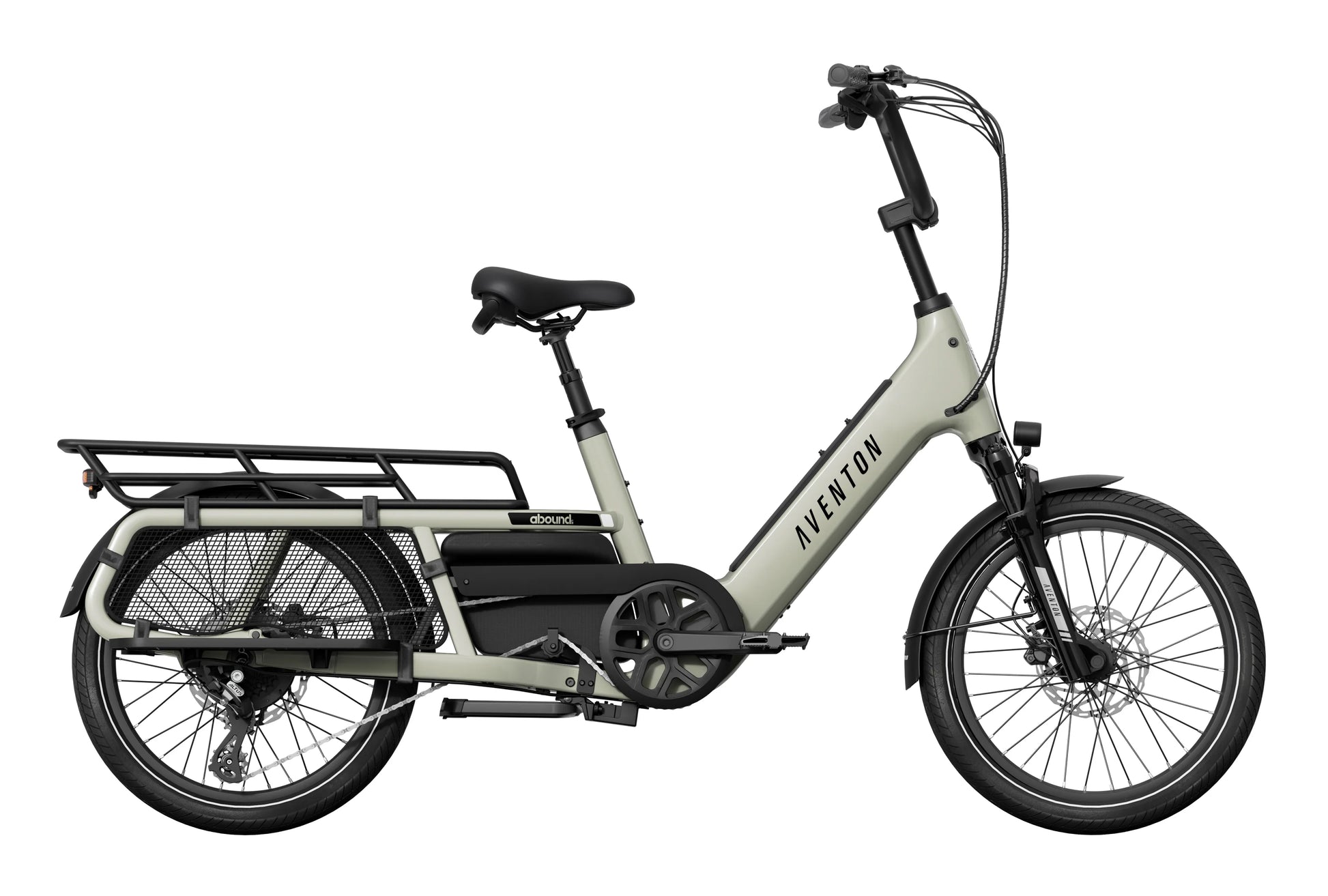

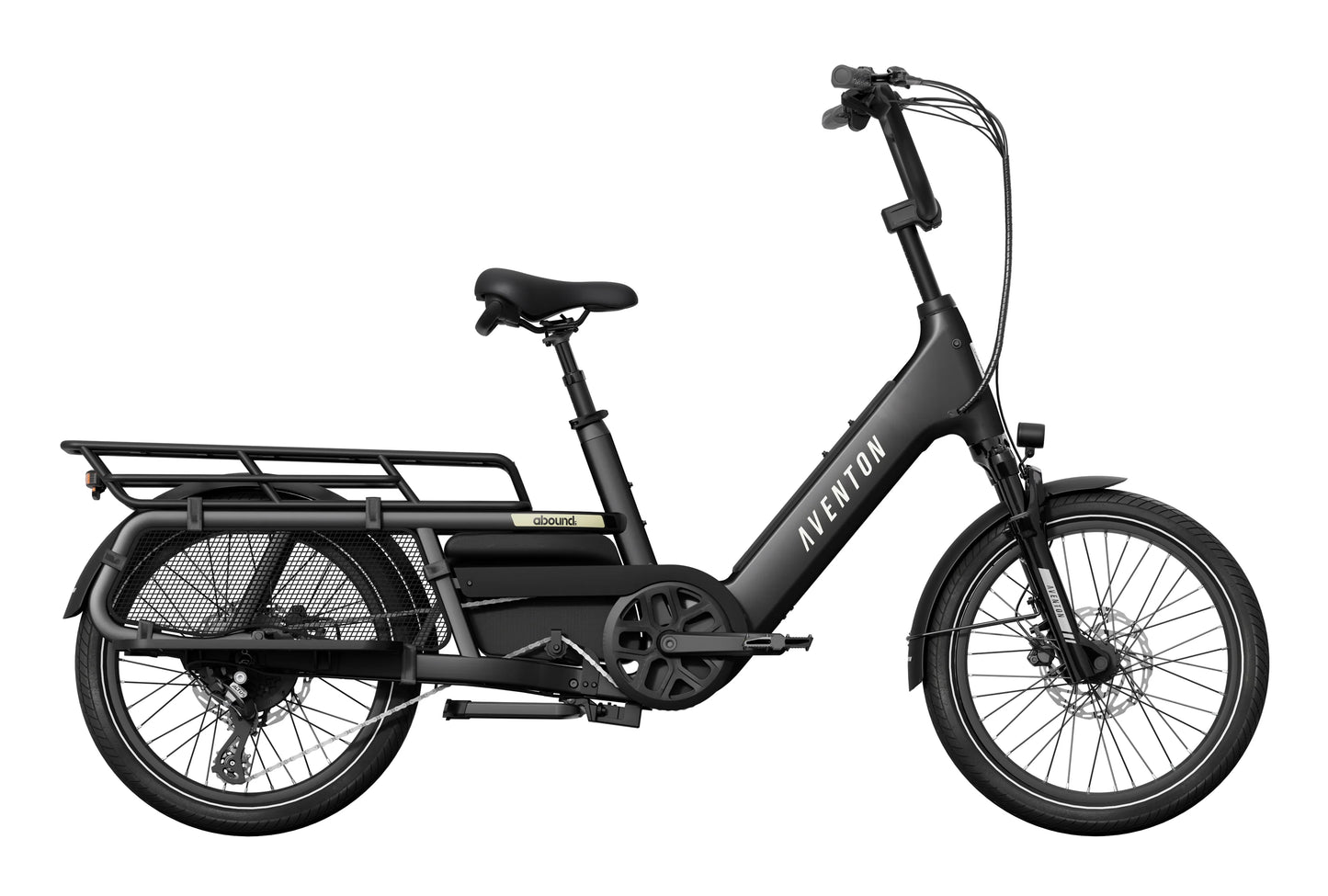

Aventon Abound LR Ebike
Aventon Abound LR Ebike
Regular price
$2,150.00 USD
Regular price
Sale price
$2,150.00 USD
Unit price
per
Couldn't load pickup availability
Price Includes Assembly and Complimentary 90 Day Tune Up!
The Abound LR is the answer to all your cargo conundrums! The 750W motor, long rear rack, and 440lb payload capacity make this the ultimate cargo carrier. Whether you're loading up the kids, your beach day essentials, or your most ambitious grocery haul, the Abound LR is ready to take on any challenge. With a gravity cast frame, adjustable quill stem, front suspension, and suspension seatpost, you can ride confidently and comfortably no matter what you're bringing along. With the addition of ACU technology, you'll rest assured knowing you can locate and control your bike from anywhere. The possibilities for what you can carry are endless, so load up and enjoy the ride with Abound LR.
WEIGHT - 88lbs
TOTAL WEIGHT LIMIT - 440 lbs
RIDER HEIGHT - 4'11" - 6'3"
EBIKE CLASS - Class 2 Ebike
WATER RESISTANCE - IPX6
RANGE - Up to 60 miles
BATTERY SAFETY CERTIFICATIONS - Certified to UL 2271
SAFETY CERTIFICATIONS - UL and TUV Safety Certified
UL 2849
IDEAL USE - Cargo & Utility
PEDAL ASSIST - 3 Levels (with Ride Tune Customization)
CARRY CAPACITY - Carry Up To 2 Passengers
FRAMESET
FRAME - Gravity Cast 6061 Single-Butted Aluminum Alloy with Internal Battery
FORK - Threaded Steerer Tube for Quill Stem 15x110 spacing, 51mm travel, adjustable lockout black stanchions
REAR SPACING - 175mm
FORK SPACING - 110mm
FRAME STYLE - Step-Through
WHEELSET
FRONT WHEEL - Double Wall Aluminum, 20in, 36hole, 13g, 20x110 Thru Axle, Schrader Valve
REAR WHEEL - Double Wall Aluminum, 20in, 36hole, 12g, Nutted Hub Drive Motor, Scharder Valve
TIRES - 20x3.0 Innova IA-2131 Urban Tire Refective Sidewalls
EBIKE SYSTEM
MOTOR - Shengyi 36V 750w Hub Drive with 6 speed sensors (1188W peak)
MOTOR TORQUE - 80Nm
DISPLAY - Aventon BC147
BATTERY - Removable Internal Lithium-ion. 36V, 20Ah, 733Wh, LG 21700 cells
BATTERY WEIGHT - 8.7lbs
CONTROLLER - 36V/33A
THROTTLE - Aventon LH Handlebar Mounted
SENSORS - Double Sided Bottom Bracket Torque Sensor
CHARGER - 36V Output: 42V/ 4A
CHARGING TIME FROM 0% TO 100% - 5 hours
LIGHTS - Front and Rear Lights Integrated w/ Turn Signals
SPEED - Class 2
BRAKES
FRONT BRAKE - Tektro HD-E3520 hydraulic disc brakes w/ EJ1 quick disconnect wire
REAR BRAKE - Tektro HD-E3520 hydraulic disc brakes w/ EJ1 quick disconnect wire
FRONT BRAKE ROTOR - 180mm 6 bolt
REAR BRAKE ROTOR - 203mm 6-bolt
DRIVETRAIN
REAR DERAILLEUR - Shimano Altus RD-M310 8 Speed
SHIFTER - Shimano 8 Speed Trigger SL-M315-8R
CHAIN - 7/8 speed 154L
CASSETTE - 12-32T / 8 Speed Shimano CS HG200-8
CHAINRING - 52 tooth
CHAINRING BCD - 104
CRANK - 3pc, 165mm crank arm
BOTTOM BRACKET - Square Taper, Sealed, Dual-Sided Torque Sensor
PEDALS - 9/16" Composite Platform
COCKPIT
SADDLE - Aventon Saddle w/ grab handle by Selle Royal
SEATPOST - Aventon Suspension Seatpost, Ø 30.9mm, 350mm Length. 50mm travel
SEATPOST CLAMP - 34.9mm
HANDLEBARS - BMX Style Aluminum 31.8mm, 720mm
GRIPS - Aventon Ergonomic Comfort lock on grips
HEADSET - H886HW Peilin 28.6mm * 56mm * 56mm H19.5mm 6pcs
REAR RACK WEIGHT LIMIT - 143 lbs
Technical Overview
The Abound LR ships as a Class II ebike, with pedal assist and throttle. The Abound will also operate with the throttle unplugged and removed, should you want to ride in an area that only allows Class I ebike or throttles are prohibited. Aventon ebikes are built to the IPX6-rated standard. An IPX6 rating means the bike is protected against high-pressure water streams from any angle. This provides strong water resistance, so you can confidently ride in heavy rain or through puddles and mud. However, IPX6 does not mean waterproof—Aventon ebikes are not designed for full submersion. Avoid using a pressure washer or sprayer to clean your ebike, as pressurized water can still damage components. *Max range determined using PAS 1 on flat terrain with a rider weight of 160 lb.*
